Exploring The Workflow of The Oxford Nanopore Technologies (ONT) from pod5 to Polished Asembly - A Note To Myself

Hands-on with Oxford Nanopore workflow: pod5 → BAM → assembly! Processed M. tuberculosis from raw signals to complete genome using dorado + flye. Fascinating how thousands of contigs became one 4M+ bp sequence. Polishing question: when is it worth the compute time?

Motivations:

ONT Minion is really cool! I have been interested in this technology for a few months now and found it to have great potential. In case we have an opportunity to explore this technology, why not let’s get familiar with the workflow, so that at least we’re somewhat familiar with the workflow and prepared to process the sequence data! Let’s explore! After somer reading, it seems like ONT produces a raw sequence file called pod5. And the file needs to be converted / processed to fasta or fastq format.

TL;DR Workflow

basecall pod5 to BAM (dorado) > Convert BAM to fastq (samtools) > Assemble (flye) > Align (dorado) & Index (samtools) > Polish (dorado)

Objectives:

• Find a pod5 file
  • pod5viewer
• workflow
  • Basecall pod5 to BAM
  • Turn BAM into fastq
  • Assemble with Flye
  • Align & Index
  • Polish
• Other methods
• Opportunities for improvement
• Lessons learnt

Find a pod5 file

If I’m not mistaken, an ONT will return a pod5 file. The way they capture the sequences is very interesting! Apparently each nucleotide, when passes through the pore, it changes the ionic current. And pod5 basically records those signals. Each signal reflects multiple nucleotide. There is a python package where we can view the pod5 file called pod5Viewer.

Now let’s find one and download it. I found a mycobacterium tuberculosis pod5 from The University of Melbourne. And interestingly, there are 45 pod5 for a single isolate. Very cool! But mostly what I saw from other pod5 files are usually just 1 big file. fyi, the zip file of pod5 was about 7 gb! Let’s view one of the file.

pod5viewer

# install
conda create -n p5v python==3.10
conda activate p5v
pip install pod5Viewer

# run
pod5Viewer

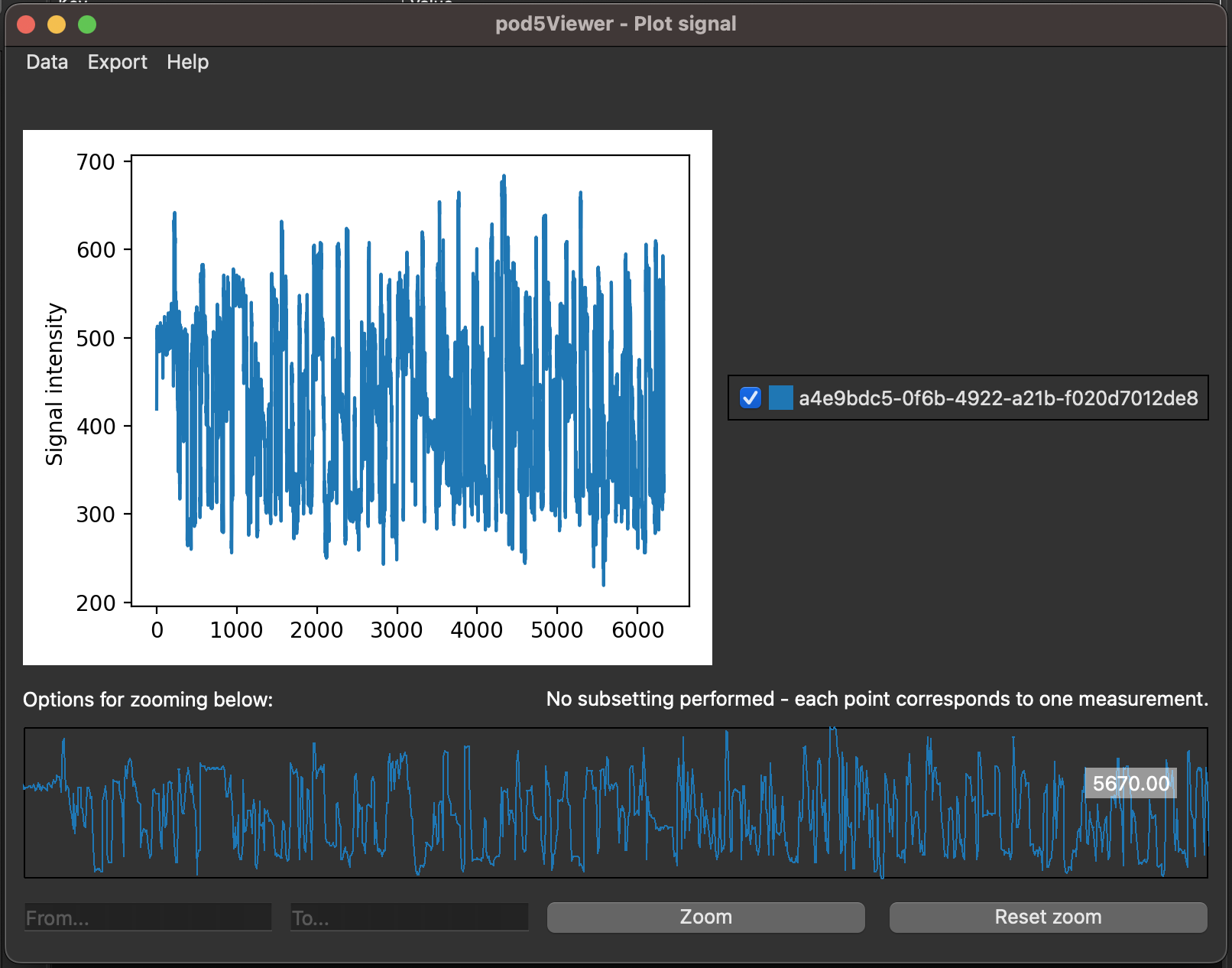

You can open the pod5 file and inspect the raw signal like so.

Interesting looking thing! Now, on to our first step of our workflow, basecalling!

Workflow

Basecall pod5 to BAM

We can use dorado to convert the pod5 file to BAM format, like so.

# installation
curl "https://cdn.oxfordnanoportal.com/software/analysis/dorado-1.1.1-osx-arm64.zip" -o dorado-1.1.1-osx-arm64.zip
unzip dorado-1.1.1-osx-arm64.zip
export PATH="/path/to/dorado-1.1.1-osx-arm64/bin:$PATH"

# basecall
dorado basecaller hac --device metal /path/to/your/pod5_files/ > mycobacterium_basecalled.bam

the bam file will be about 600mb.

Turn BAM into fastq

# install
wget https://github.com/samtools/samtools/releases/download/1.22.1/samtools-1.22.1.tar.bz2
cd samtools-1.x
./configure --prefix=/where/to/install
make
make install
export PATH=/where/to/install/bin:$PATH

# convert
samtools fastq mycobacterium_basecalled.bam > mtb.fastq

Wow, the fastq is 1.4g. Let’s take a look at the fastq!

Wow! So many contigs! Hmm, can we mlst this? Let’s try.

mlst mtb.fastq

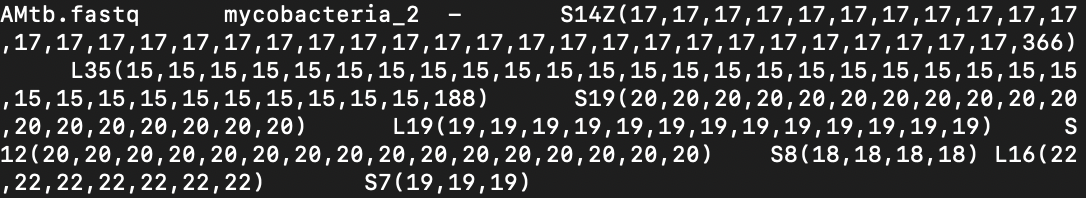

Wow, this already works pretty good! It was already identify mycobacterium. Because there are so many repeats, that’s why we’re seeing repeated loci profiles listed. Interestingly, some with different loci profile. Alright, our next step is to assemble and see if we make them into 1 longgggg sequence

Assemble with Flye

# install
conda install flye

# assemble
flye --nano-hq mtb.fastq \
     --threads 10 \
     --out-dir mtb_assembly

That took a few minutes. Great! Let’s go into our mtb_assembly folder and read the assembly.fasta

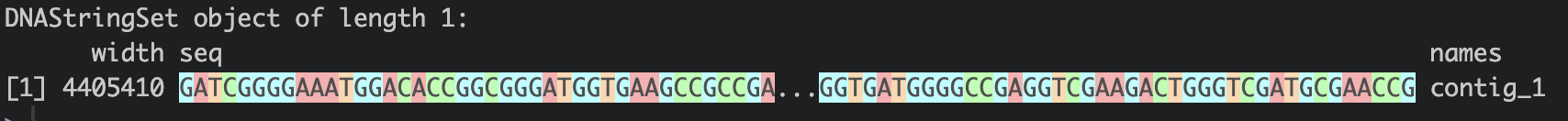

Wow, look at that! One longgg contig! Hurray! Now let’s run mlst again and then see what pops up.

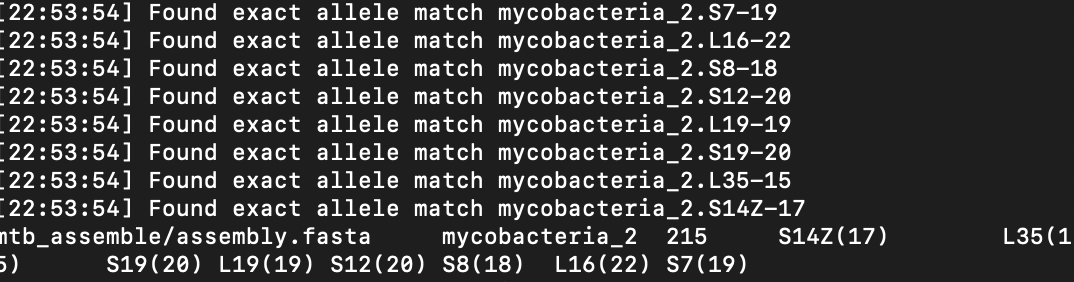

mlst mtb_assembly/assembly.fasta

Pretty good. Same thing! Mycobacterium tuberculosis. Let’s blast it with whole genome and see what pops up.

blastn -query mtb_assemble/assembly.fasta -db /blast_db/ref_prok_rep_genomes -outfmt 6 -num_threads 10 -out mtb_wgs.txt

library(tidyverse)

colnames <- c("qseqid", "sseqid", "pident", "length", "mismatch", "gapopen", "qstart", "qend", "sstart", "send", "evalue", "bitscore")

df <- read_tsv("mtb_wgs.txt", col_names = colnames)

sseqid_vec <- df |>
  arrange(desc(bitscore)) |>
  head(10) |>
  pull(sseqid)

system(paste0("blastdbcmd -db blast_db/ref_prok_rep_genomes -outfmt '%a %t' -entry ",paste(sseqid_vec, collapse = ",")))

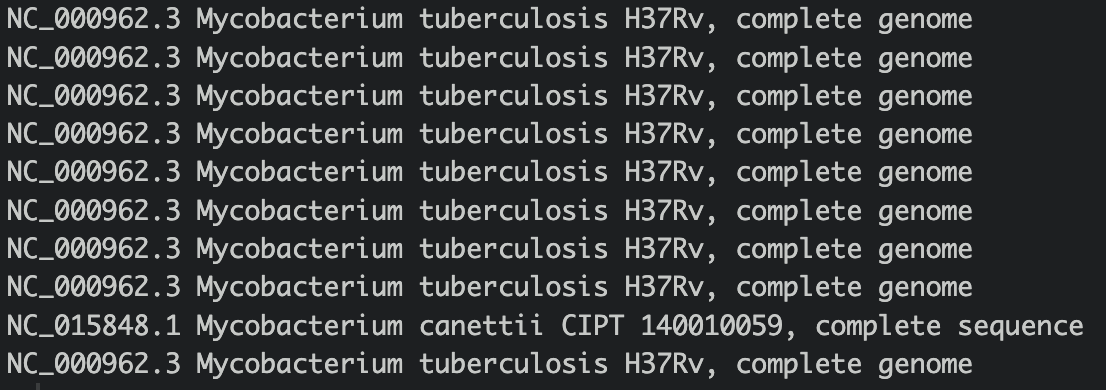

We’re looking at arranged descending bitscore and top 10 results. Nine of 10 are Mtb, which is great! Wait a minute, there is something called Mycobacterium canettii. What is that !? Wow, at least that’s an Mtb complex! Let’s dive in a bit.

seq_to_compare <- c("NC_000962.3","NC_015848.1")

df |>
  filter(sseqid %in% seq_to_compare) |>
  group_by(sseqid) |>
  mutate(total_length = sum(length)) |>
  distinct(sseqid,total_length)

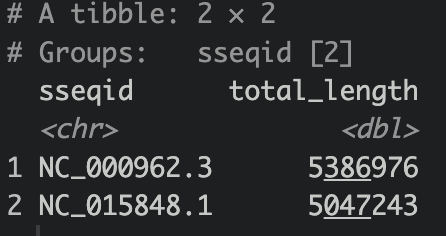

Wow, looking at the total length for both reference sequence, they have very wide coverage, NC_000962.3 (Mtb) being the highest but M canettii isn’t too bad either at 5047243!

Alright, next is to polish! But before we can polish, we have to align & index.

Align & Index

# align and create new aligned bam
dorado aligner mtb_assembly/assembly.fasta mycobacterium_basecalled.bam | samtools sort > aligned_mycobacterium.bam

# Index the new alignment
samtools index aligned_mycobacterium.bam

this should create 2 files, aligned_mycobacterium.bam and aligned_mycobacterium.bam.bai. Alright, so far so good! This process might be less than a minute. Next, we polish!

Polish

dorado polish --device auto aligned_mycobacterium.bam mtb_assembly/assembly.fasta > polished_assembly.fasta

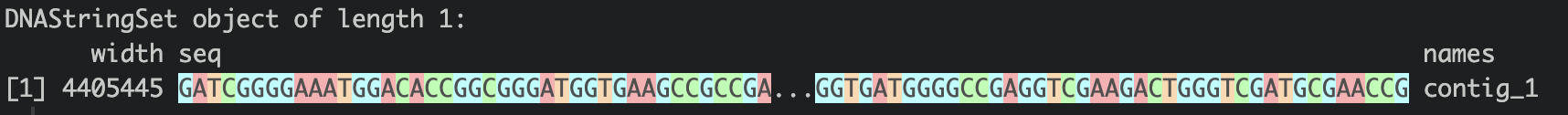

Looks like the current polish method does not allow metal to my knowledge. Maybe that might change. But still it wasn’t bad, took a bout 1 hour for polishing. And we ended up with 35 additional nucleotides on the polish_assembly.

Which begs the question, why do we need to polish these assembly? 🤔

Let’s see if this changes anything in terms of blastn with whole genome.

blastn -query polished_assembly.fasta -db /blast_db/ref_prok_rep_genomes -outfmt 6 -num_threads 10 -out mtb_wgs_polished.txt

colnames <- c("qseqid", "sseqid", "pident", "length", "mismatch", "gapopen", "qstart", "qend", "sstart", "send", "evalue", "bitscore")

df <- read_tsv("mtb_wgs_polished.txt", col_names = colnames)

sseqid_vec <- df |>
  arrange(desc(bitscore)) |>
  head(10) |>
  pull(sseqid)

system(paste0("blastdbcmd -db blast_db/ref_prok_rep_genomes -outfmt '%a %t' -entry ",paste(sseqid_vec, collapse = ",")))

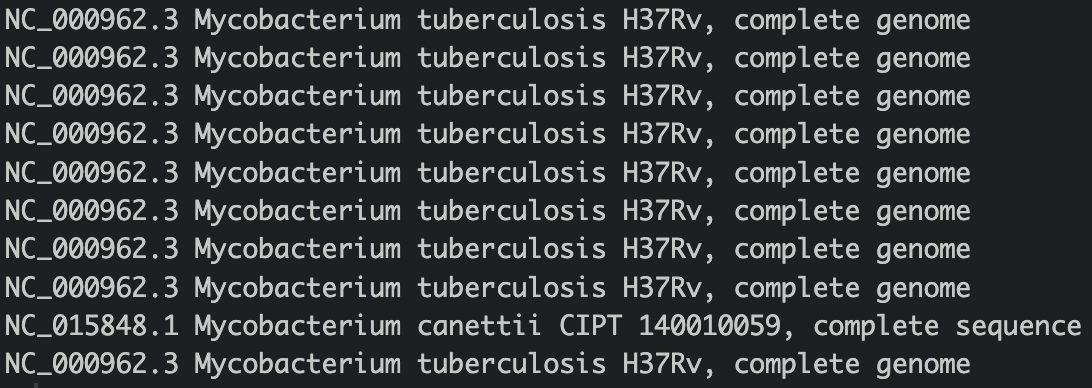

No change! Bitscore didn’t change either (not shown). Very interesting. I’m not exactly sure when do we need to use this post-assembly process. And what makes this “more” accurate?

Other Methods

Epi2me has great workflow for automated selection with additional perks as well, including using resfinder to assess antimicrobial resistance genes etc. I’ve tried the command line, minimal coding. Does require installation of Java, Nextflow, and Docker. If you’re using mac and has alert of mac malware, click on this link to find out how to disable it. There is also a GUI version of epi2me, you can check that out as well, but it requires registration and login. I personally have not used that.

On a side note, epi2me uses medaka for polishing and it’s extremely slow on my computer. Unsure why and probably user error. Hence my workflow of using dorado for most of the tasks. I could essentially write a R script to automate all of the above. A project for the near future!

Opportunities for improvement

• Definitely looking forward to adding resfinder workflow to assess amr. Since this doesn’t have a complete mycobacterium amr sequences, we may have to add another database that contains those such as AMRfinder
• Explore prokka for annotation
• Need to learn quality control
• need to learn what is the acceptable threshold to set for blastn when we’re using it to identify isolate
• need to learn when to use polish and when not to

Final Thoughts

That was fun exploring the raw sequence of ONT to constructing the workflow to process raw sequence to a polished assembly. Though this use case is probably not ideal for identification because most of the current less laborous technology such as PCR can already identify Mtb, this might be helpful for phylogenetic analysis and tree construction. Also might be helpful in assessing NTM. Since I couldn’t find a raw sequence of NTM, I wasn’t able to look into that… but it was fun going through a known MTB, MLST, and blast!

Lessons learnt

• learnt pod5Viewer, dorado, flye, samtools
• learnt to process raw ONT sequence to a polish assembly
• explore a bit on how we could use resfinder or other methods to explore AMR. this will be potentially helpful
